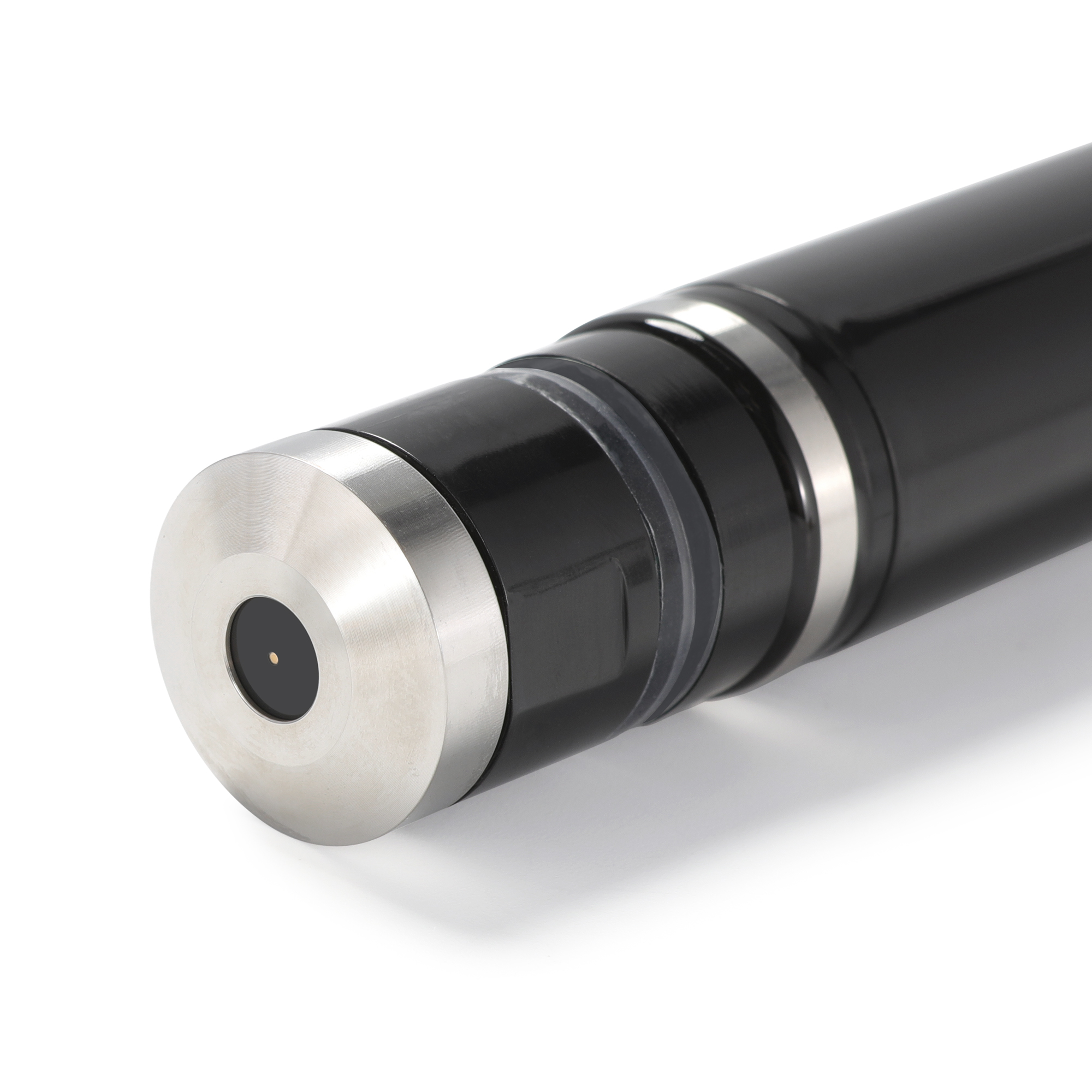

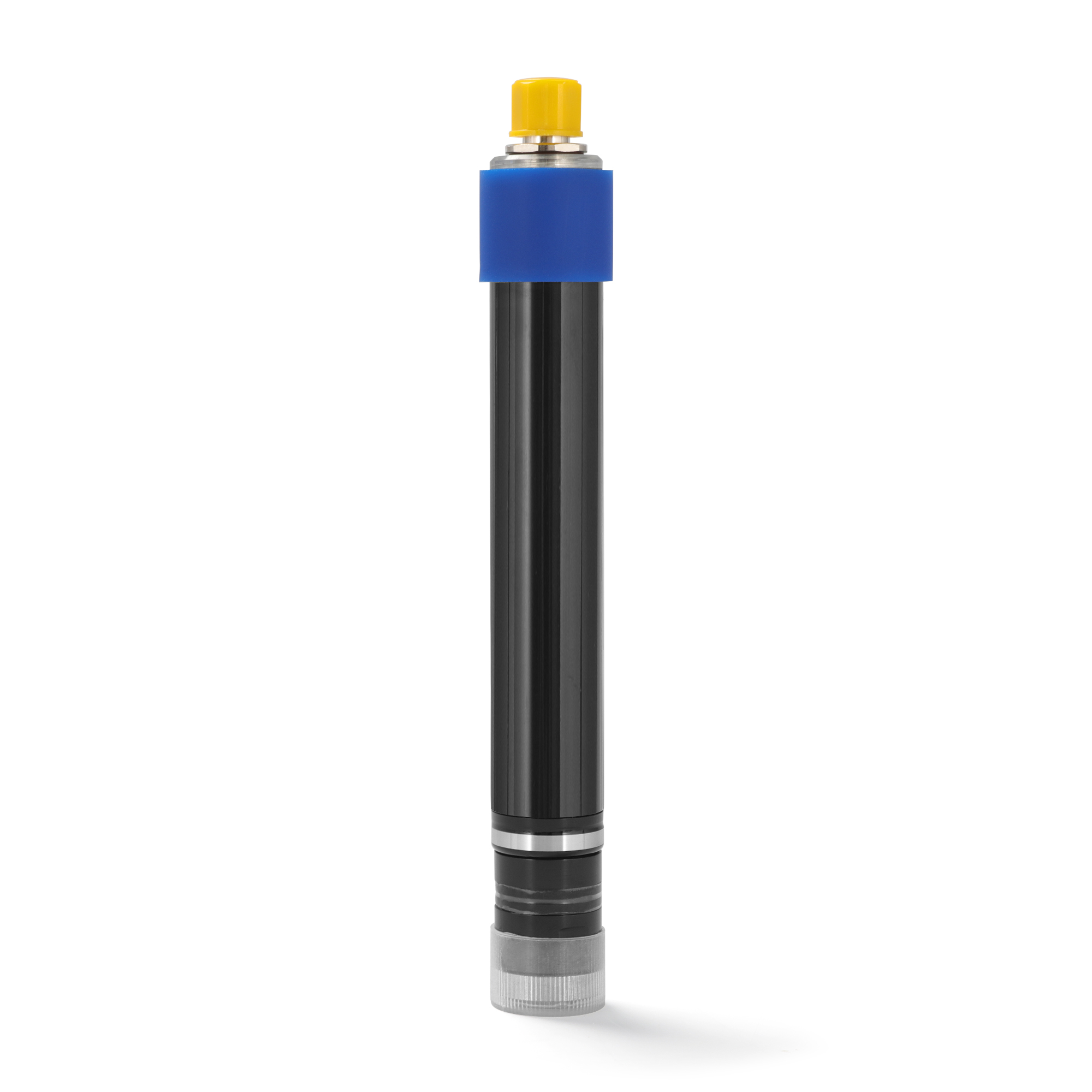

EWS-3EMC-TCl Total Chlorine Water Quality Sensor

Category Sensors for Drinking Water Tag Total Chlorine

The sensor adopts membrane-covered amperometric potential static 3-electrode, which effectively improves the measurement stability and accuracy of the sensor.
The measurement of total chlorine by the sensor is not disturbed by the pH environment and does not require a separate pH compensation function.
The sensor can be equipped with our TRM series transmitter and Ulik-Server Cloud Service to realize remote real-time monitoring, as well as remote operation and maintenance of equipment.

★ Key Performance Parameters：

Monitoring parameter	Range	Accuracy	Resolution
Total Chlorine	0-2 mg/L (ppm) or 0-20 mg/L (ppm)	±3% F.S.	0.001 mg/L

Basic Parameters:

Additional information

Principle	Three-electrode, laminating method
Measurement Interval	Minimum 1 s
Interface	RS485
Protocol	Modbus RTU
IP Rating	IP68
Mounting	Flow-through Installation
Weight	0.11 kg
Material	AISI 316L
Dimension	Φ25×205 mm
Working Voltage	DC 12~24 V
Power	＜6 W
Working Temp	2～45 ℃(35.6～113 ℉)
Pressure	≤0.5 MPa
Humidity	5%~95%
Cable Length	Custom
Certification	CE/RoHS
Warranty	One year
