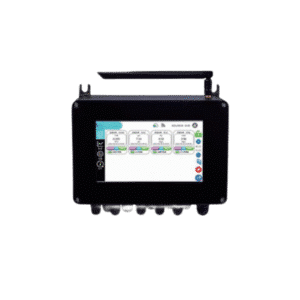

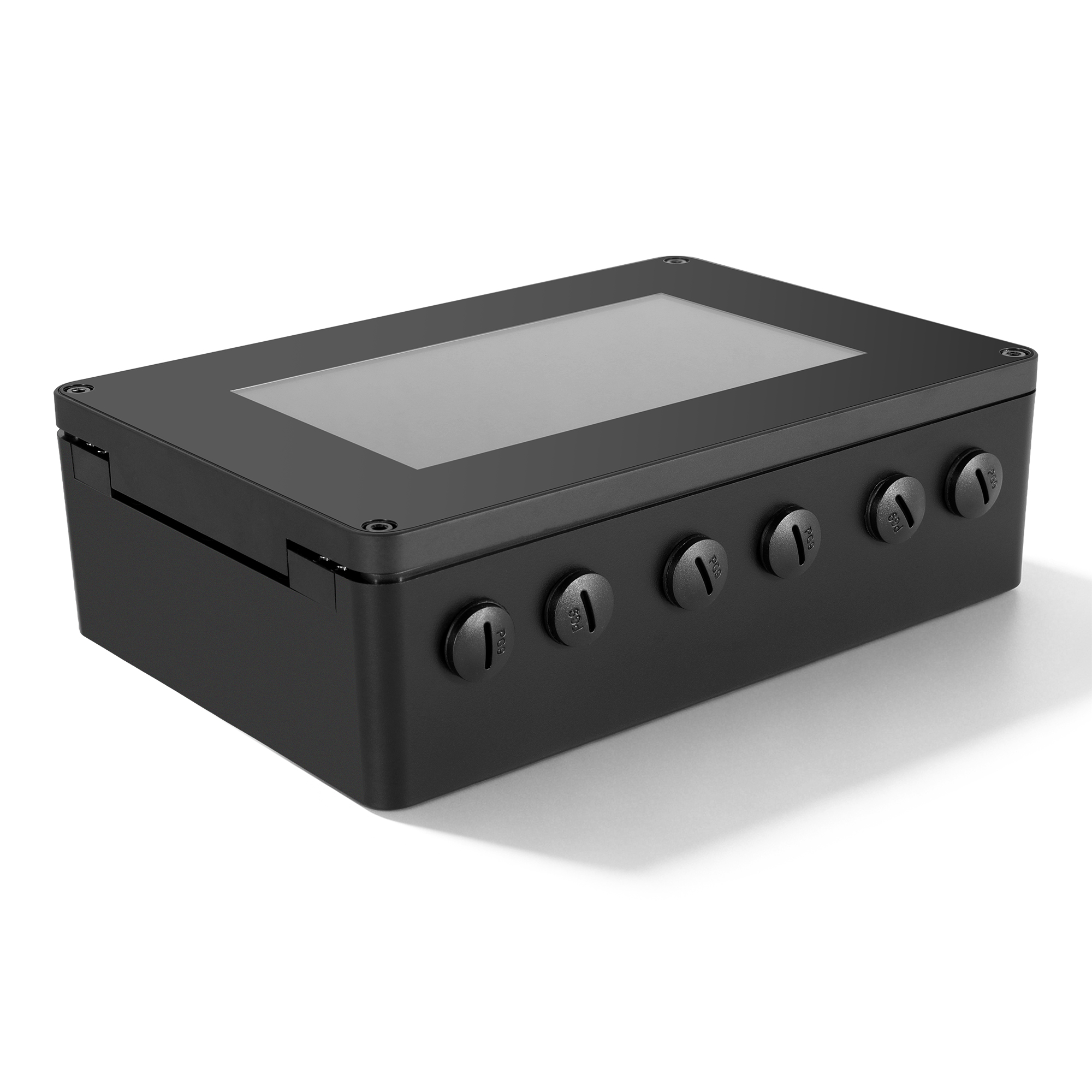

TRM-TP Transmitter

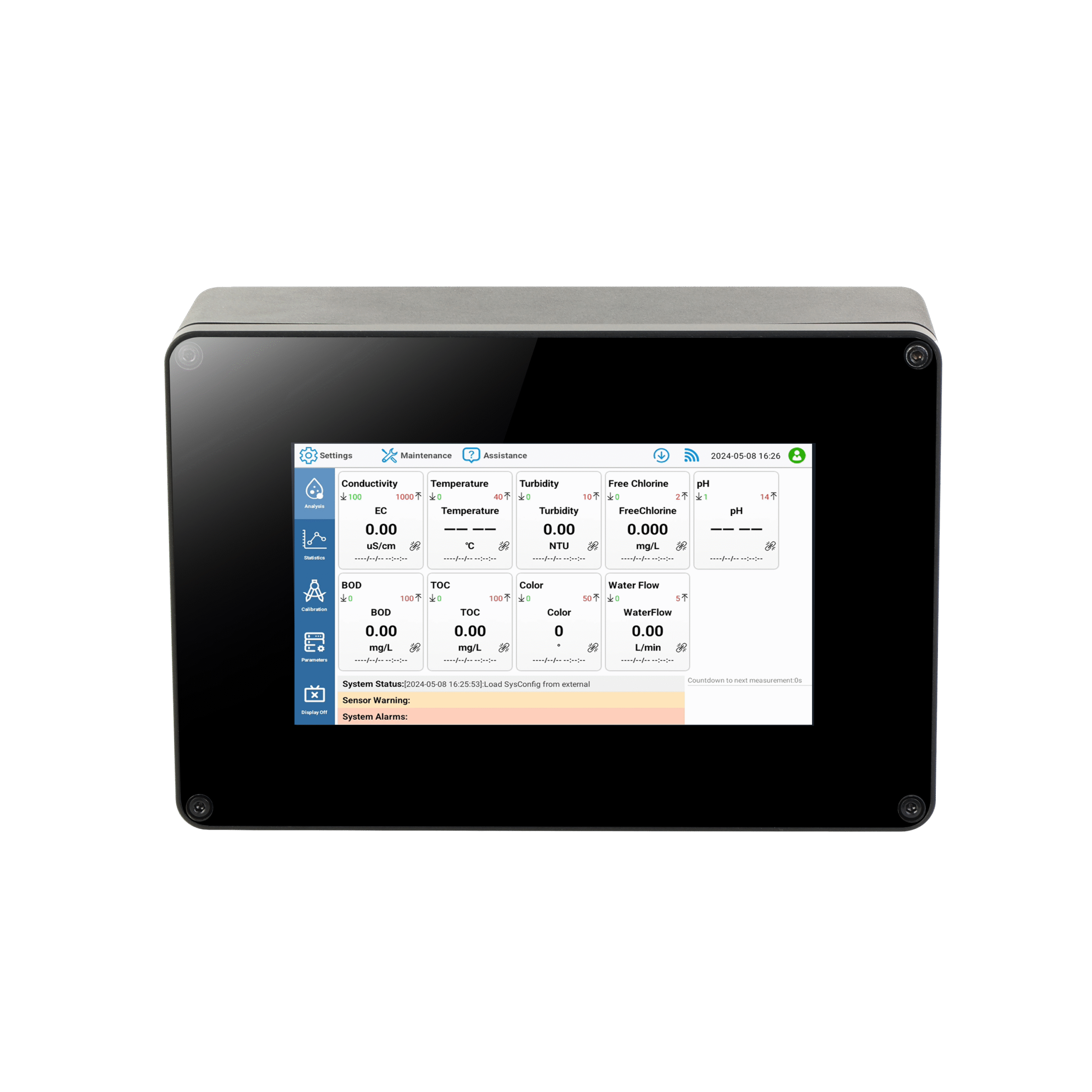

  • The TRM-TP transmitter is equipped with a 7-inch touchscreen and can connect to 4~8 sensors simultaneously.
  • Quick Connect, Sensor Auto-Recognition, Reading data in real time.
  • Strong compatibility, supporting RS485 output, 4-20 mA output, and IO output
  • Wireless communication supports 4G, WIFI, can upload the data to the cloud service via HTTP/MQTT protocol.
  • The software is an App developed based on the Android system.

Specification:

Additional information

Display Screen

7 inch color LCD touch-screen

Dimension

230×154×68 mm

Weight

1.9 kg

Power Requirement

DC 24 V

Power Consumption

< 15 W (No sensor connected)

Protection Class

IP65

Installation

Wall-mounted

Operating temperature

-20~70 ℃(-4~158 ℉)

Data Storage

32 GB

Communication

4-way RS485 input,1-way RS485 output
4G, WIFI (HTTP, MQTT protocol).

Warranty

One year

Certification

CE/RoHS
