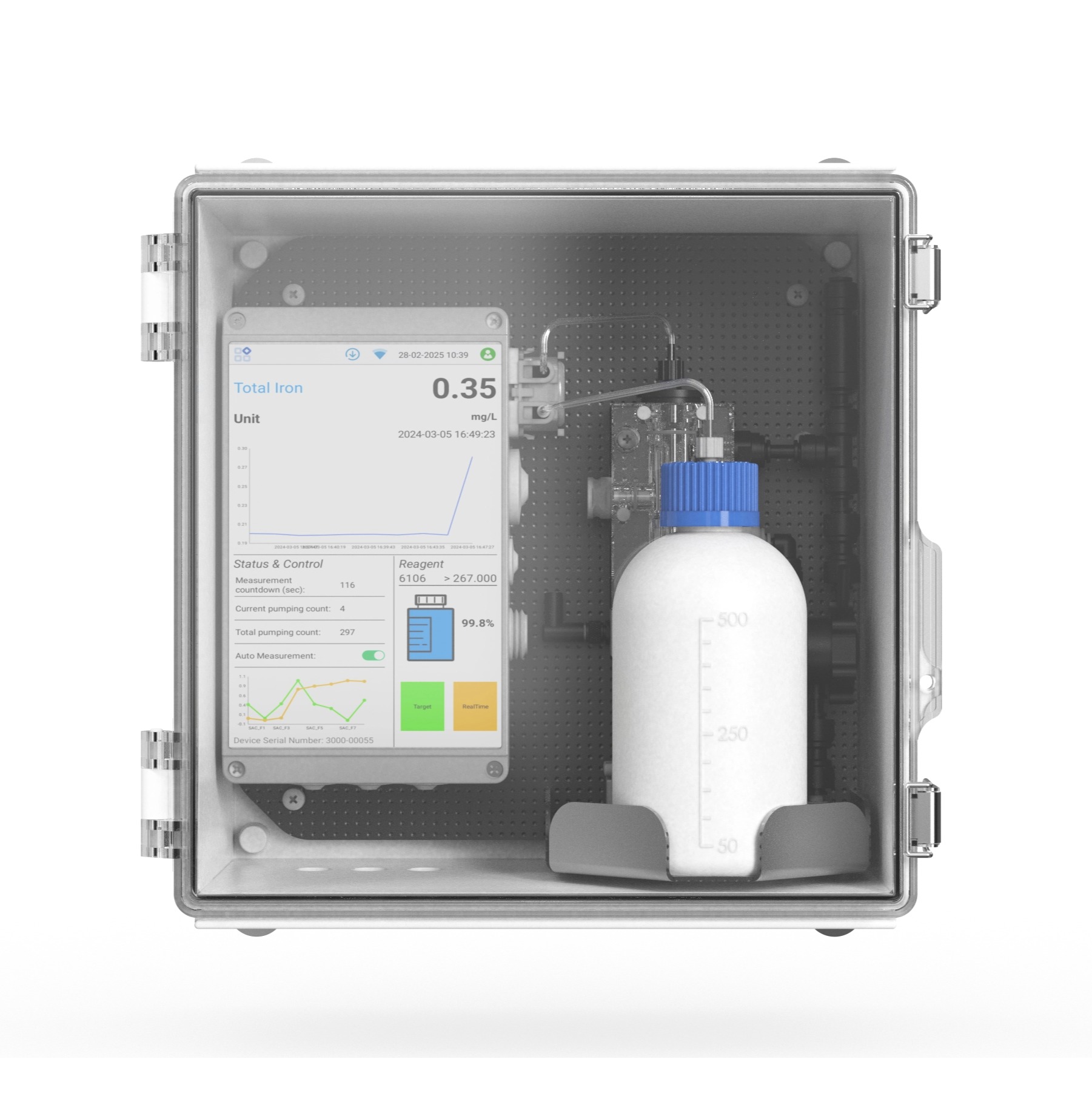

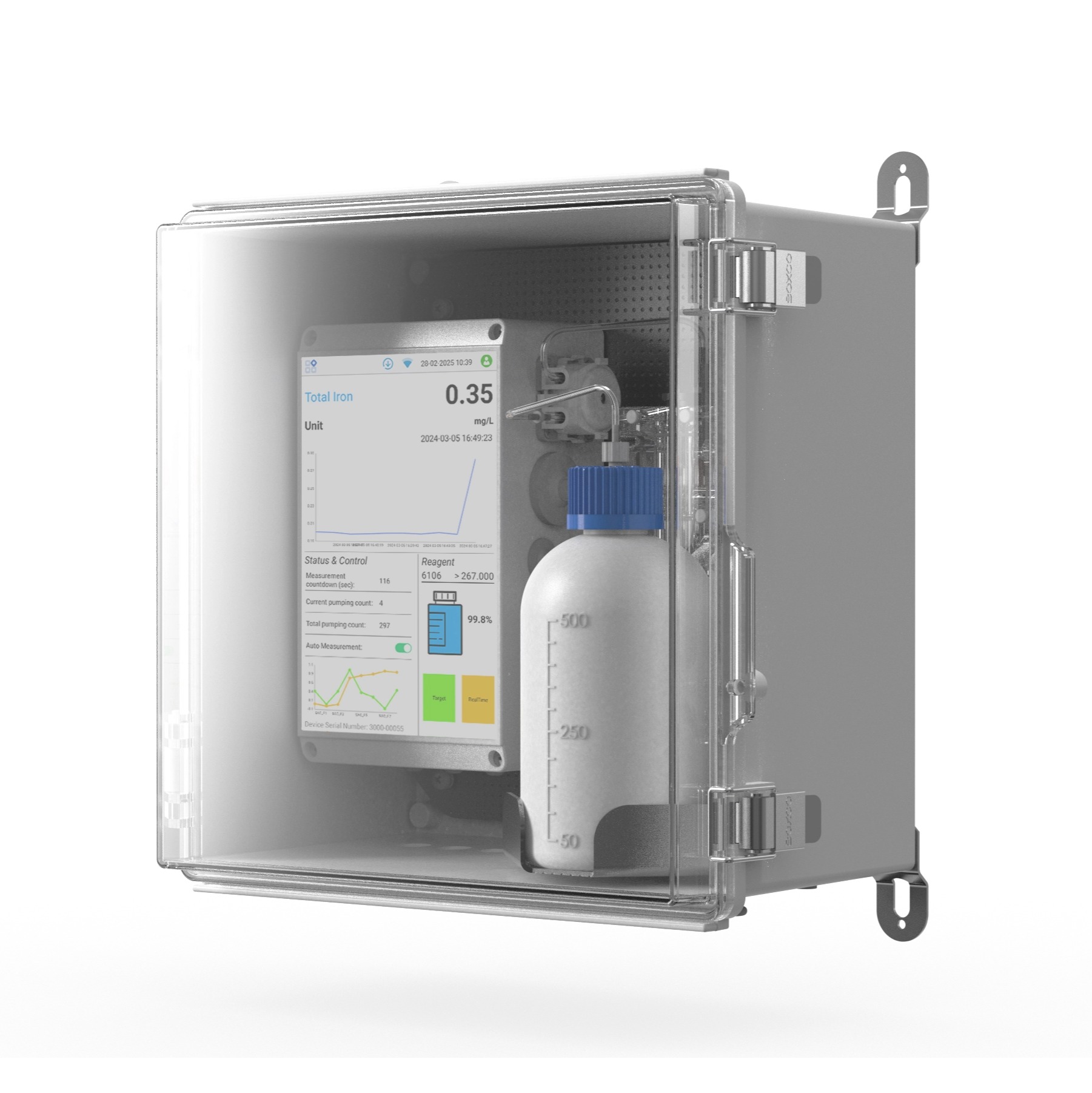

CWA-Fe-T01 is an online total iron analyzer that measures the concentration of dissolved iron (trivalent and divalent iron) in water by colorimetric methods. The reagents are automatically pumped into the water sample for reaction and the total iron concentration in the water is measured by the colorimetric method. By selecting different reagents, the analyzer can measure different total iron concentrations.
★ Key Performance Parameters：
| Monitoring parameter | Range | Accuracy | Repeatability |
| Total Iron | 0.01-0.5 mg/L(ppm), 0.2-6.0 mg/L(ppm) | ±10 % F.S. | ±5 % F.S. |
Reagent range
| No. | Reagent type | Range (mg/L) | Capacity |
| 6201 | WAR-Fe-T01 | 0.01-0.5 | 500 mL |
| 6202 | WAR-Fe-T02 | 0.2-6.0 | 500 mL |
Specification:
| Measurement Method | Titrimetric colorimetric method |
|---|---|
| Dimension(H x W x D) | 300×300×180 mm |
| Weight | Approx. 4 kg |
| Power Requiremens | 100-240 VAC, 50/60 Hz |
| Power Consumption | 25W |
| Operating Temperature | 5 – 45 °C (41 – 113 °F) |
| Storage Temperature | 5 – 45 °C (41 – 113 °F) |
| Protection Class | IP54 |
| Humidity | 20 % – 95 %, indoor installation |
| Pressure | 0.2 – 2 bar |
| Tubing Requirements | Inlet/Outlet: 6 mm outer diameter |
| Communication | RS 485 (Modbus RTU), WiFi, 4G (optional) |
| Analog Output | 0/4 – 20 mA, Resolution: < 100 μA, Max. load: 750 Ω |
| Digital Input | 1~way I/O input (for start analysis/ flow switch) |
| Digital Output | 2 relays (max. 250 VAC / 30 VDC 3A) |
| Data Storage | 32G |
| Cable Length | 6 m (6.56 ft), Customizable length |
| Warranty | One year |
