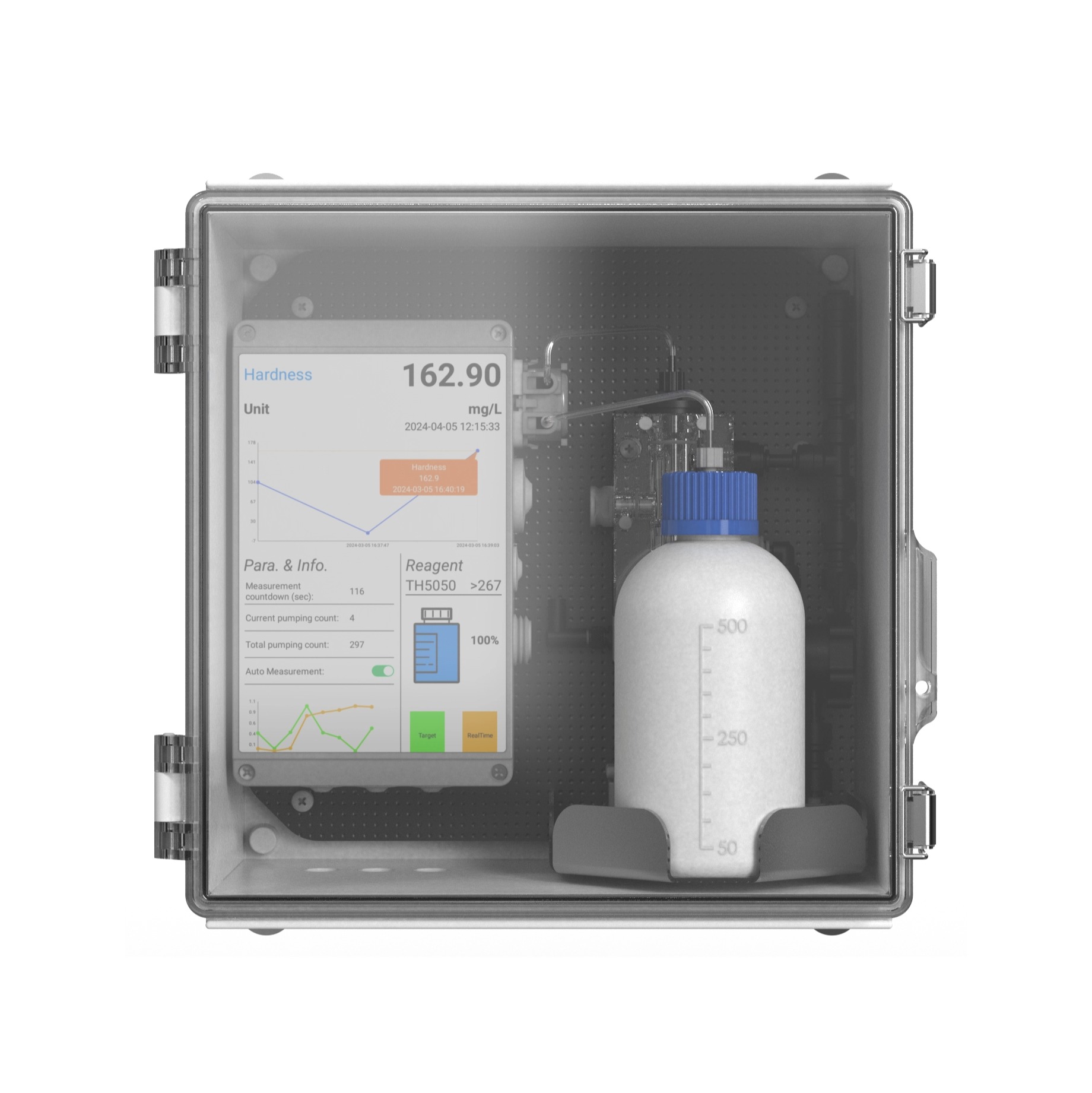

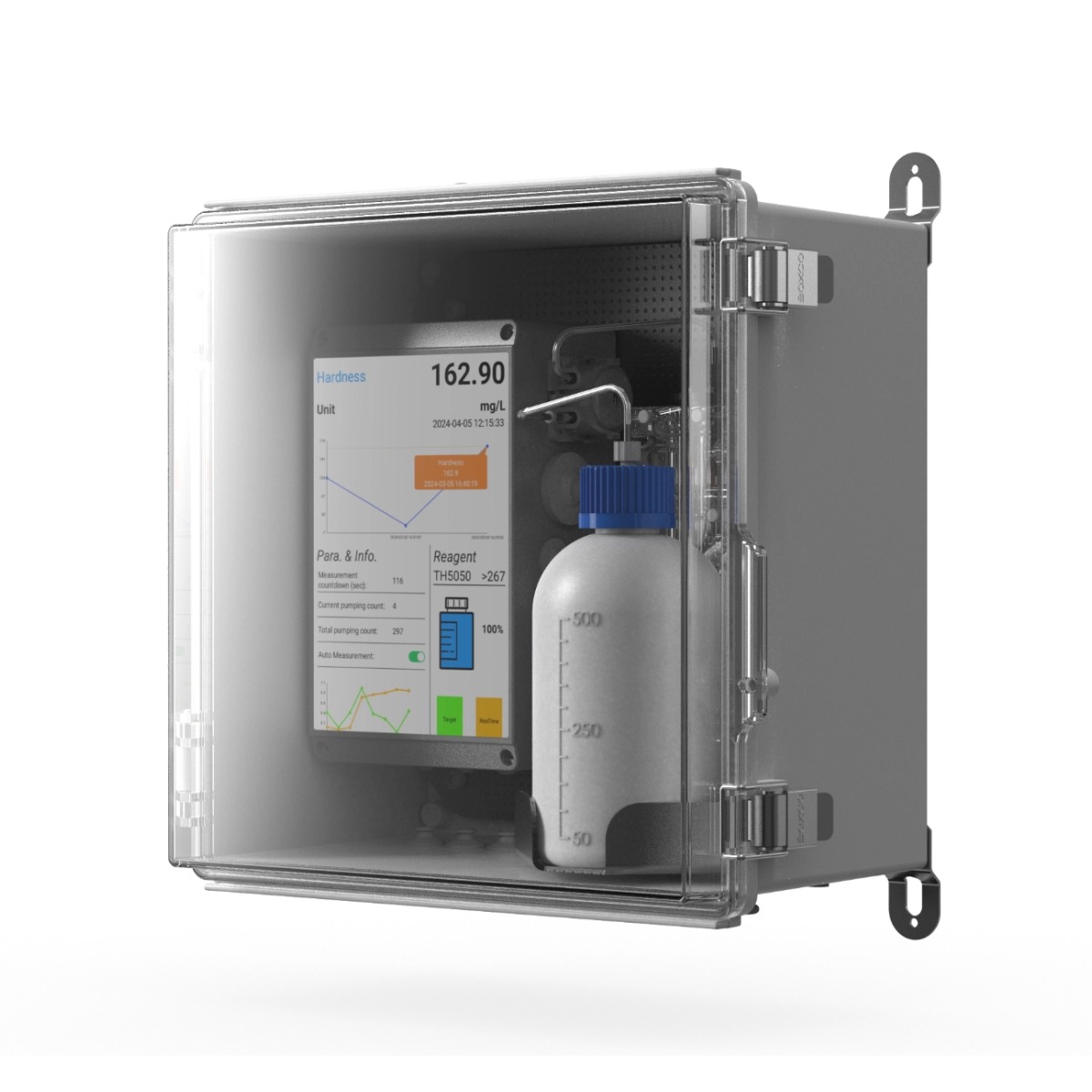

The CWA-Hd-S01 is an online hardness analyzer that measures the hardness of water by titration and colorimetry. Automatically pumps reagents into the water sample for reaction, determines the endpoint of the reaction by colorimetry, and then determines the hardness concentration in the water based on the amount of reagent added. By selecting different reagents, the analyzer can measure different hardness concentrations.
★ Key Performance Parameters：
| Monitoring parameter | Range | Accuracy | Repeatability |
| Total hardness | 0.21-534.0 mg/L(ppm) CaCO₃ | ±5 % F.S. | ±5 % F.S. |
Reagent range
| No. | Reagent type | mg/L(ppm) CaCO3 | °dH | °f | mmol/L |
| 6101 | WAR-Hd-T01 | 0.21-2.14 | 0.012-0.12 | 0.021-0.214 | 0.002-0.021 |
| 6102 | WAR-Hd-T02 | 0.53-5.34 | 0.03-0.3 | 0.053-0.534 | 0.005-0.053 |
| 6103 | WAR-Hd-T03 | 1.60-16.0 | 0.09-0.9 | 0.160-1.602 | 0.016-0.160 |
| 6104 | WAR-Hd-T04 | 5.34-53.4 | 0.3-3.0 | 0.534-5.340 | 0.053-0.534 |
| 6105 | WAR-Hd-T05 | 16.02-160.2 | 0.9-9.0 | 1.602-16.02 | 0.160-1.602 |
| 6106 | WAR-Hd-T06 | 26.7-267.0 | 1.5-15 | 2.670-26.70 | 0.267-2.670 |
| 6107 | WAR-Hd-T07 | 53.4-534.0 | 3.0-30 | 5.340-53.40 | 0.534-5.340 |
Specification:
| Measurement Method | Titrimetric colorimetric method |
|---|---|
| Dimension(H x W x D) | 300×300×180 mm |
| Weight | Approx. 4 kg |
| Power Requiremens | 100-240 VAC, 50/60 Hz |
| Power Consumption | 25W |
| Operating Temperature | 5 – 45 °C (41 – 113 °F) |
| Storage Temperature | 5 – 45 °C (41 – 113 °F) |
| Protection Class | IP54 |
| Humidity | 20 % – 95 %, indoor installation |
| Pressure | 0.2 – 2 bar |
| Tubing Requirements | Inlet/Outlet: 6 mm outer diameter |
| Communication | RS 485 (Modbus RTU), WiFi, 4G (optional) |
| Analog Output | 0/4 – 20 mA, Resolution: < 100 μA, Max. load: 750 Ω |
| Digital Input | 1~way I/O input (for start analysis/ flow switch) |
| Digital Output | 2 relays (max. 250 VAC / 30 VDC 3A) |
| Data Storage | 32G |
| Cable Length | 6 m (6.56 ft), Customizable length |
| Warranty | One year |
