TRM-HP Handheld Meter Transmitter

TRM-HP Handheld Meter Transmitter
Category

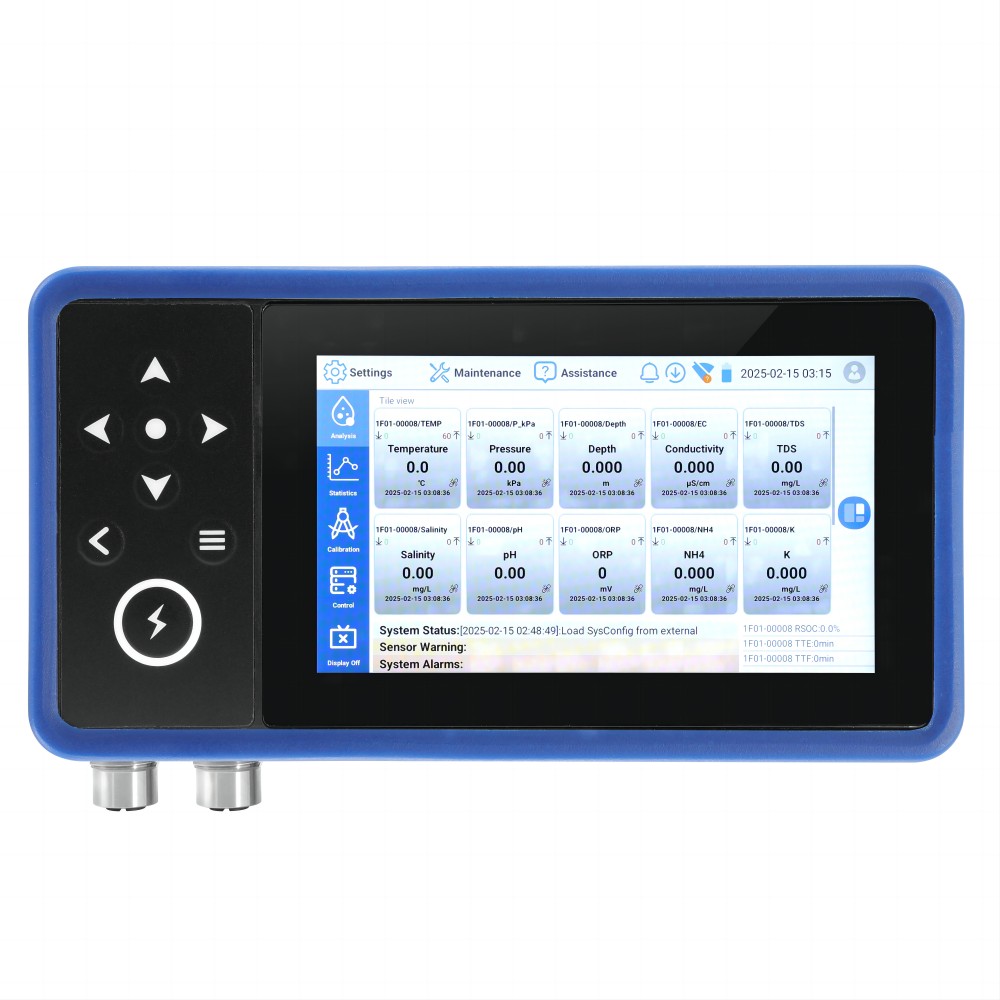

  • The TRM-HP meter transmitter is a handheld device that features 4G, WiFi, and Bluetooth for wireless data transmission.
  • Up to 2 sensors can be connected.
  • Strong compatibility, can be connected to all sensors of our company and sensors of other RS485 communication methods.
  • LCD touch screen, clear display, easy to operate.
  • The software is an App developed based on the Android system.
Ask for a Quote

Specification:

Additional information

Display Screen

5 inch color LCD touch-screen
Dimension

184×97×40 mm
Weight

0.55 kg
Battery

2 x 18650 flat-top lithium battery
Protection Class

IP65
Operating temperature

-20~60 ℃(-4~140 ℉)
Charging: 10-45°C(50-113°F)
Data Storage

32 GB
Communication

4-way RS485 input,1-way RS485 output
4G, WIFI (HTTP, MQTT protocol).
Location

GPS
Interface

M12 5-pin aviation connector
Certification

CE/RoHS
Warranty

One year
