★ Key Performance Parameters
| Parameter | Optical path | Range | Resolution | Accuracy（Standard solution） |
| COD | 40mm (min) | 0-50 mg/L | 0.01 mg/L | ±3%R.D. or ±1 mg/L |
| 80mm (typical) | 0-15 mg/L | 0.01 mg/L | ±0.5 mg/L | |
| BOD | 40mm (min) | 0-30 mg/L | 0.01 mg/L | ±1 mg/L |
| 80mm (typical) | 0-9 mg/L | 0.01 mg/L | ±0.5 mg/L | |
| TOC | 40mm (min) | 0-10 mg/L | 0.01 mg/L | ±0.5 mg/L |
| 80mm (typical) | 0-6 mg/l | 0.001 mg/L | ±0.3 mg/L | |
| DOC | 40mm (min) | 0-10 mg/L | 0.01 mg/L | ±0.5 mg/L |
| 80mm (typical) | 0-6 mg/l | 0.01 mg/L | ±0.3 mg/L | |
| TUR | 40mm (min) | 0-50 NTU | 0.01 NTU | ±5%R.D. or ±1 NTU |
| 80mm (typical) | 0-15 NTU | 0.01 NTU | ±1 NTU | |
| TSS | 40mm (min) | 0-100 mg/L | 1 mg/L | ±5 mg/L |
| 80mm (typical) | 0-50 mg/L | 1 mg/L | ±5 mg/L | |
| Color | 40mm (min) | 0-100 PCU | 1 PCU | 10% F.S. |
| 80mm (typical) | 0-15 PCU | 1 PCU | 10% F.S. | |
| NO3-N | 40mm (min) | 0-2.5 mg/L | 0.001 mg/L | ±0.1 mg/L |
| 80mm (typical) | 0-0.5 mg/L | 0.001 mg/L | ±0.05 mg/L | |
| NO2-N | 40mm (min) | 0-2.5 mg/L | 0.001 mg/L | ±0.1 mg/L |
| 80mm (typical) | 0-0.5 mg/L | 0.001 mg/L | ±0.05 mg/L | |
| O3 | 40mm (min) | 0-1.5 mg/L | 0.01 mg/L | ±5% F.S. |
| 80mm (typical) | 0-0.5 mg/L | 0.001 mg/L | ±5% F.S. | |
| Temperature | -5~50 °C | 0.01 °C | ±0.1 °C |
Note: The optical path can be customized. For the wider measurement range, please contact us.
Specification:
| Principle | UV-visible absorption spectroscopy with deconvolution algorithm. |
|---|---|
| Light Source | Xenon lamp |
| Service Life of Light Source | > 10 years |
| Spectrum Resolution | 1nm |
| Detectors Pixel Array | 2048 |
| Wavelength | 200 nm ~ 800 nm |
| Optical Path | 2 mm, 5 mm, 15 mm, Customizable |
| Automatic Compensation for Cross Sensitivities | Organic Matter, Solid Particles, Turbidity |
| Measurement Interval | 10 to 65535 seconds |
| Weight | 4.0 kg |
| Dimension | Φ66×513 mm |
| Material | AISI 316L |
| Power requirements | DC 12 V~24 V |
| Power Consumption | ＜8 W |
| Protection Class | IP68 |

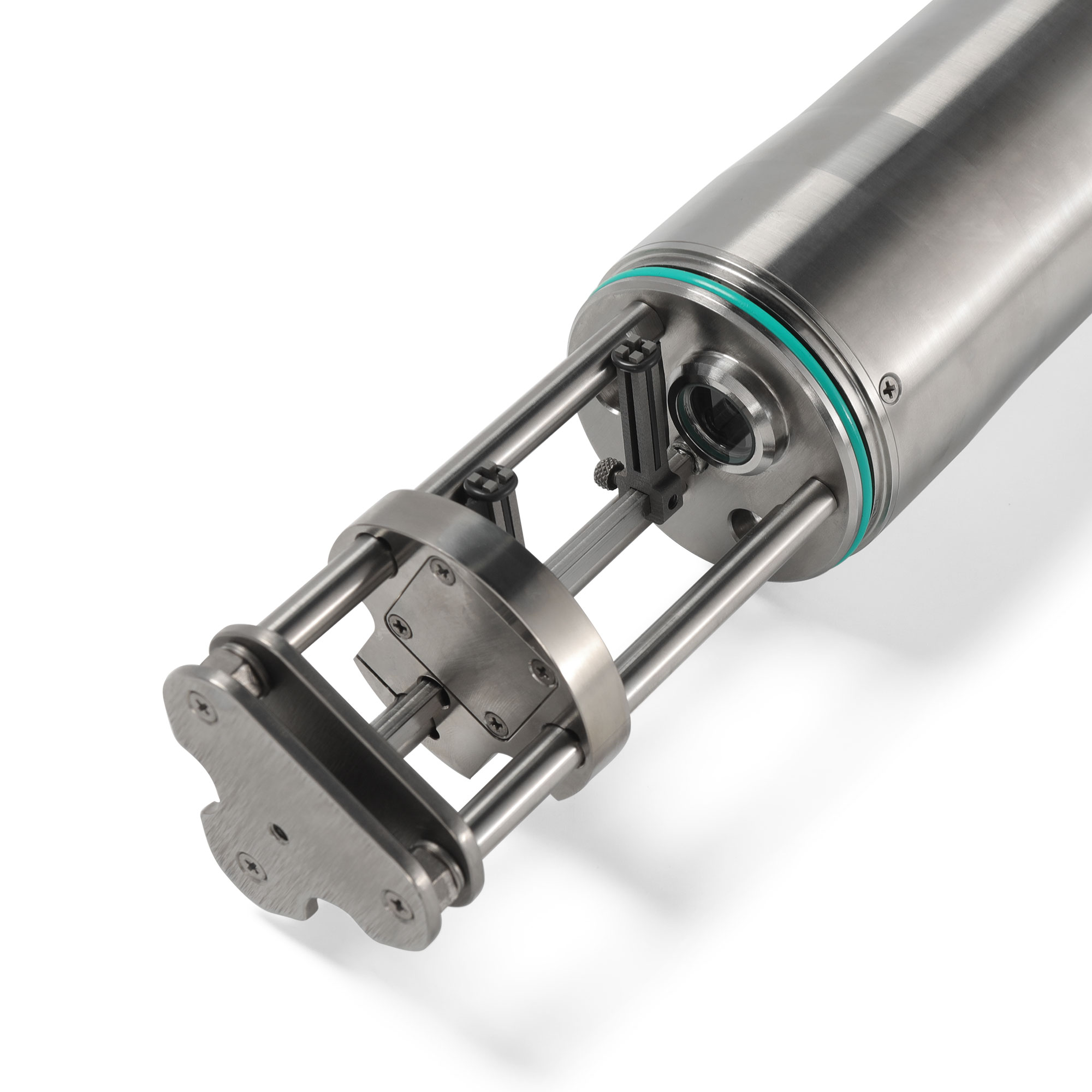

| Cleaning Method | Automatic cleaning wiper |
| Installation | Immersion, Flow-through |
| Operating temperature | -5 °C to 50 °C (23 – 122 °F), in unfrozen water. |
| Storage temperature | -5 °C to 50 °C (23 – 122 °F) |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Pressure | ≤ 6 bar |
| Flow rate | 200-500 ml/min |
| Flow Velocity | <3 m/s |
| Communication | RS 485 (Modbus RTU), Bluetooth |
| Cable Length | Cable extending directly: 6 m (19.69 ft.), customizable length |
| Certification | CE/RoHS |
| Warranty | One year (extra cost for extension available) |
