★ Key Performance Parameters：
| Monitoring parameter | Range | Accuracy | Resolution |
| Color (Platinum-Cobalt Scale) | 0 – 500 PCU (Platinum-Cobalt Unit) | ±1.5 PCU or ±3% R.D. | ≤1 PCU |
| Temperature | -5°C to 50°C | 0.01 °C | ±0.1 °C |
Specification:
| Principle | UV-Vis multi-wavelength spectral absorption |
|---|---|
| Optical Path | 100mm |
| Dimension | Φ30×301 mm (Dimensions may vary slightly for different models) |
| Weight | 0.9 kg |
| Material | 316L stainless steel / Titanium (Optional) |
| Power Requirements | DC 12 ~ 24 V |
| Power Consumption | <2 W |
| Protection Class | IP68/IP67 |

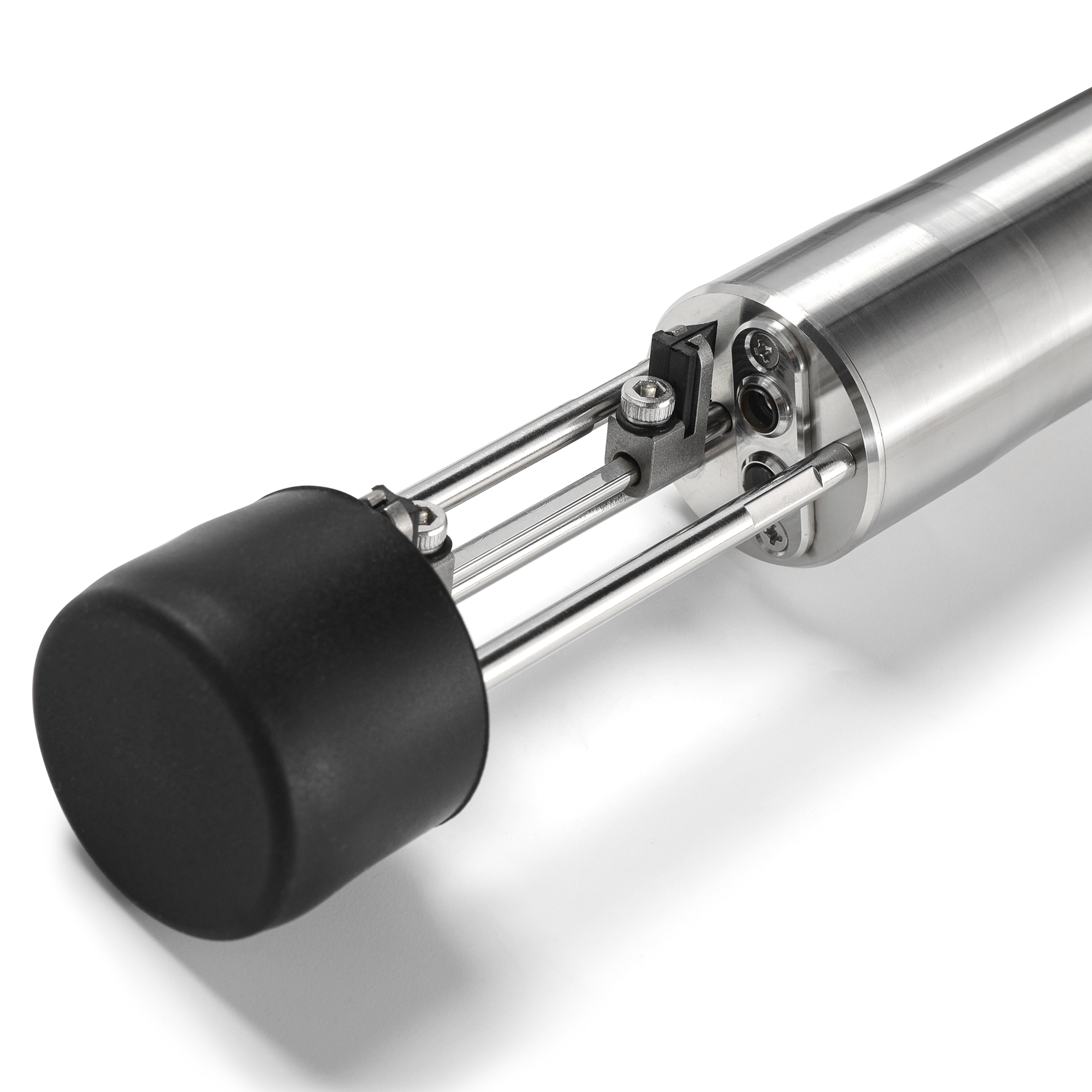

| Cleaning Method | Automatic cleaning wiper |
| Installation | Submerged, Flow-through |
| Operating Temperature | -5 °C to 50 °C (23 – 122 °F), in unfrozen water. |
| Storage Temperature | -5 °C to 50 °C (23 – 122 °F) |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Pressure | ≤ 6 bar |
| Flow Rate | 200-500 ml/min |
| Flow Velocity | <3 m/s |
| Cable Length | Cable extending directly: 6 m (19.69 ft.), M12 5-pin aviation plug: 2 m (6.56 ft.) Customizable length |
| Communication | RS 485 (Modbus RTU), Bluetooth |
| Warranty period | One year (extra cost for extension available) |
