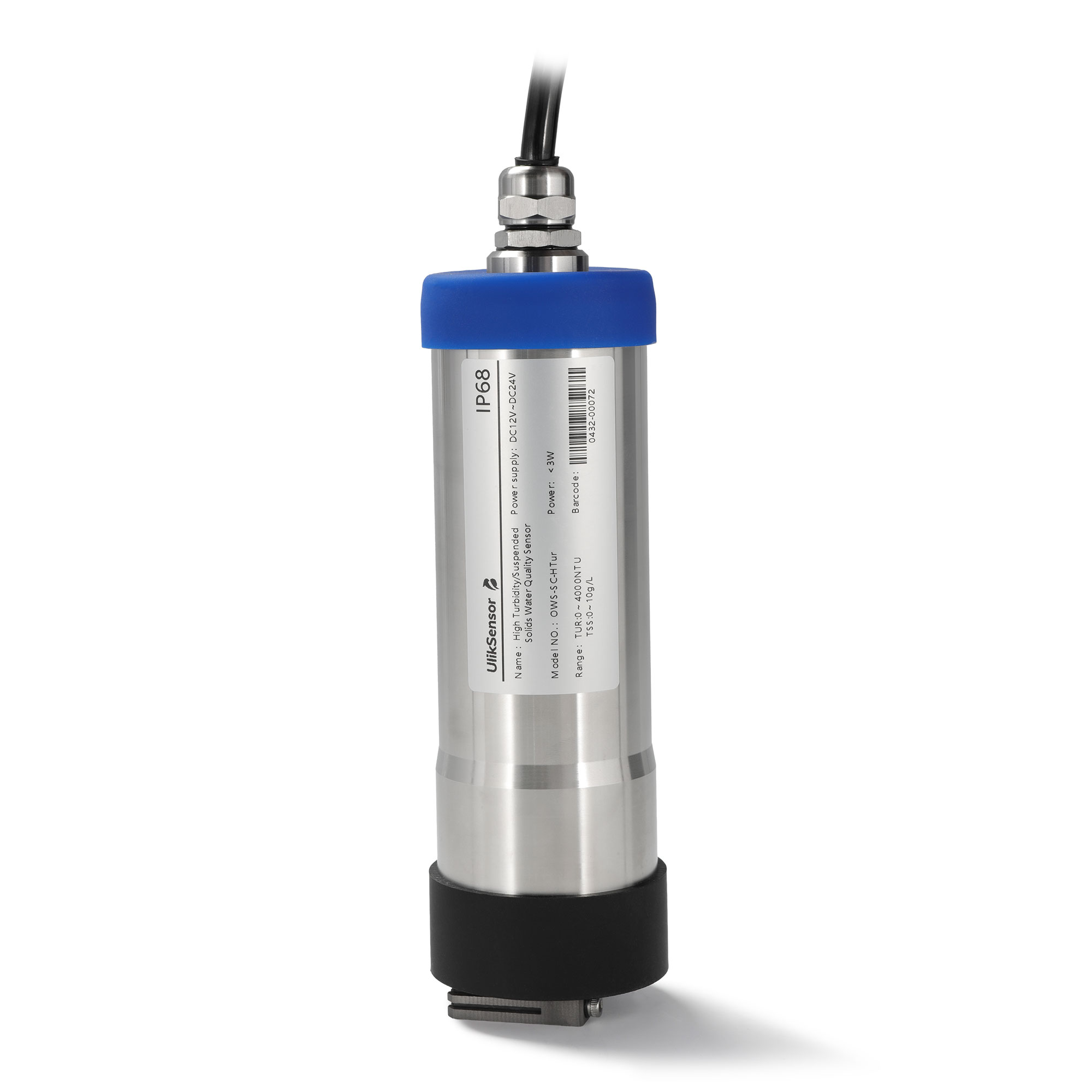

OWS-SC-HTur High Turbidity Water Quality Sensor

Category Sensors for Wastewater & Surface Water Tags TSS, TUR

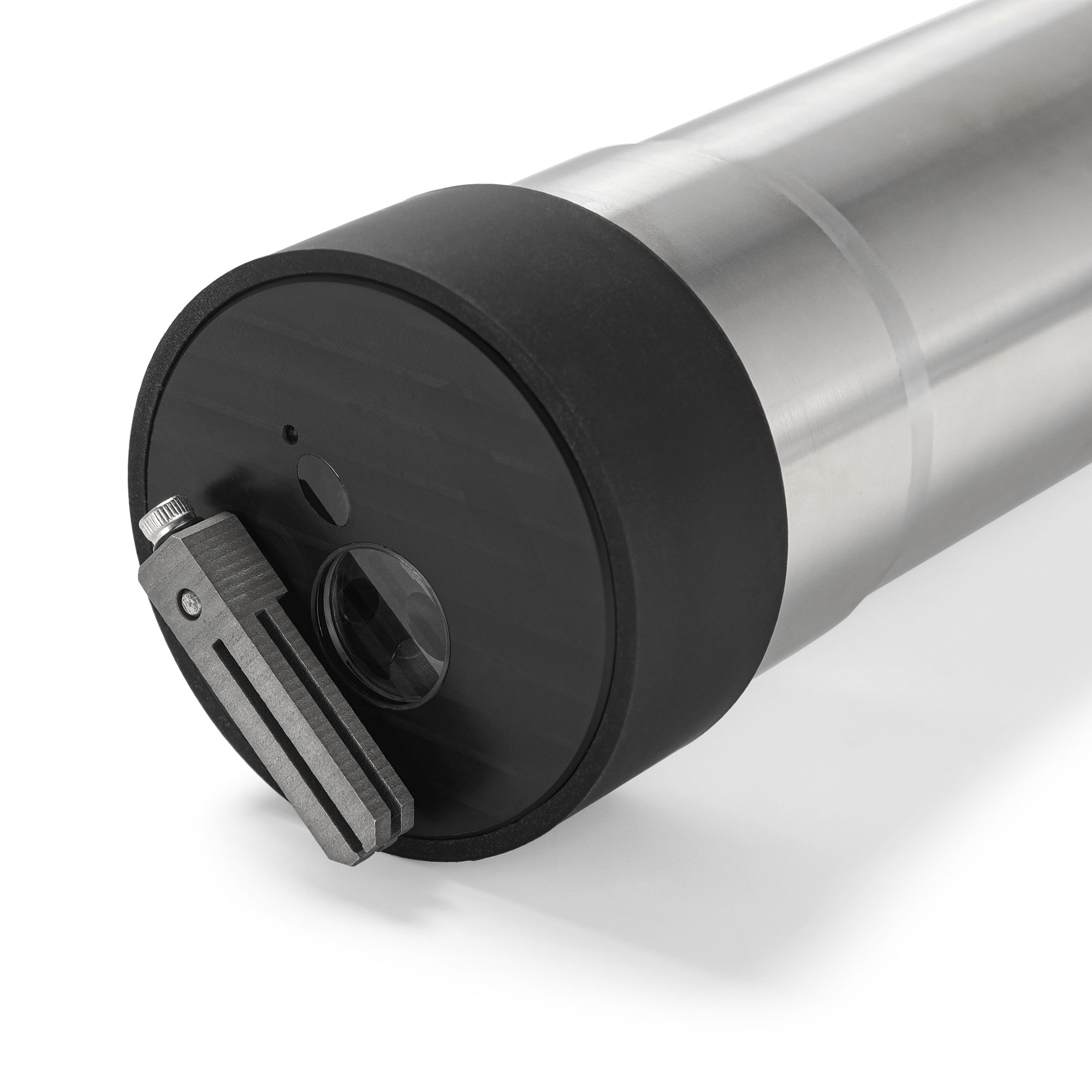

Based on 90° and backscattering light measurement principles, OWS-SC-HTur has an automatic optical window cleaning function.
It is mainly applied to the measurement of turbidity and suspended matter in the field of surface water, domestic sewage, and industrial sewage.
The sensor can be equipped with our TRM series transmitter and Ulik-Server Cloud Service to realize remote real-time monitoring, as well as remote operation and maintenance of equipment.

★ Key Performance Parameters：

Monitoring Parameter	Range	Accuracy	Resolution
TUR	0~4000 NTU	±5% of reading or ±0.015 NTU(the larger value)	0.001 NTU
TSS	0-10 g/L	±5% of reading or ±1 mg/L(the larger value)	1 mg/L

Basic Parameters:

Additional information

Monitoring Parameter	TUR, TSS
Principle	90° and backscattering light measurement principles
Measurement Interval	Minimum 1 s
Interface	RS485
Protocol	Modbus RTU
IP Rating	IP68
Material	AISI 316L
Weight	1.6 kg
Dimension	Φ55 mm×212 mm
Mounting	Immersion
Cleaning Methed	Automatic, brush
Working Voltage	DC 12 V~24 V
Power	<6 W
Working Temp	0 ℃~50 ℃
Pressure	≤0.6 Mpa
Humidity	5%~95%
Cable Length	Custom
Certification	CE/RoHS
Warranty	One year
