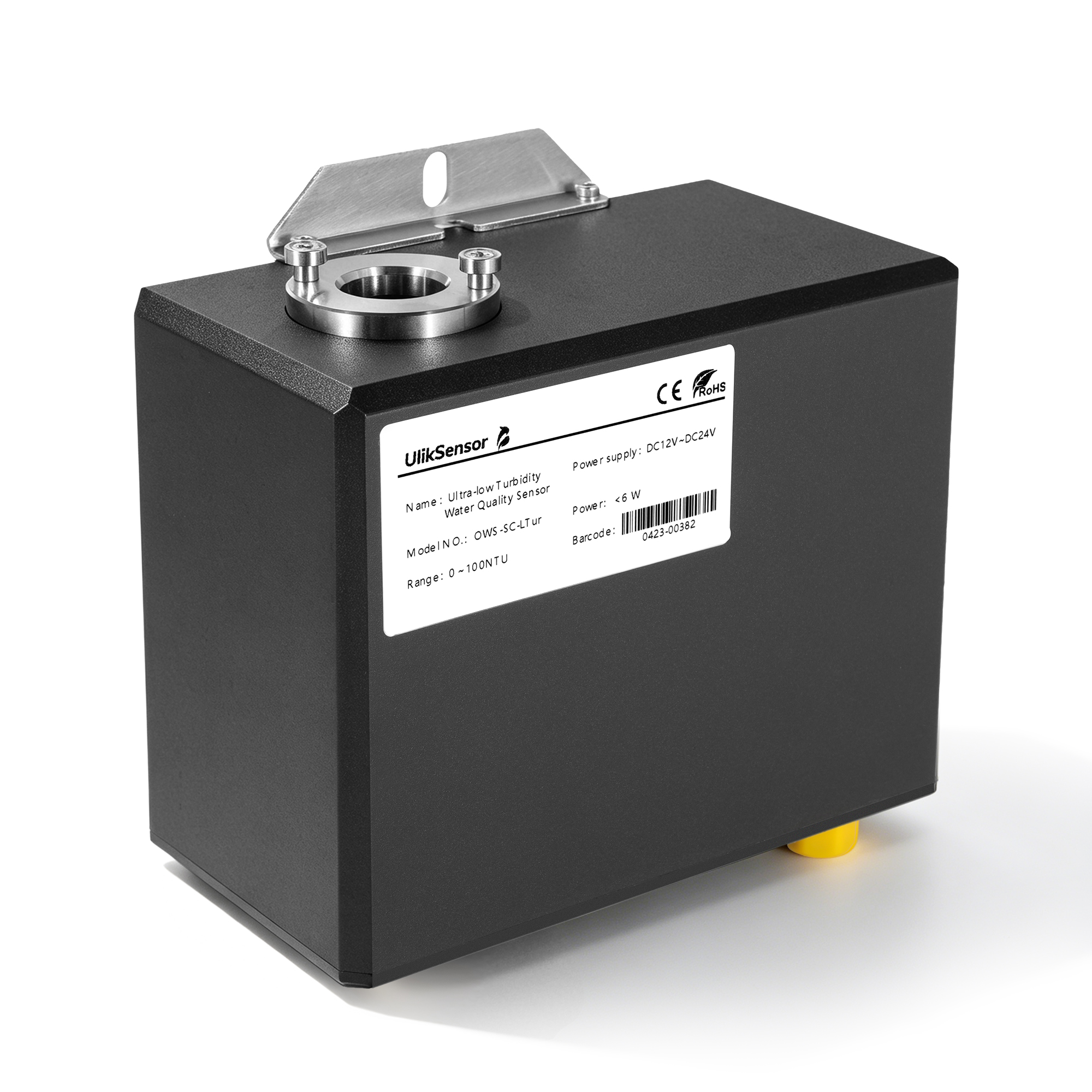

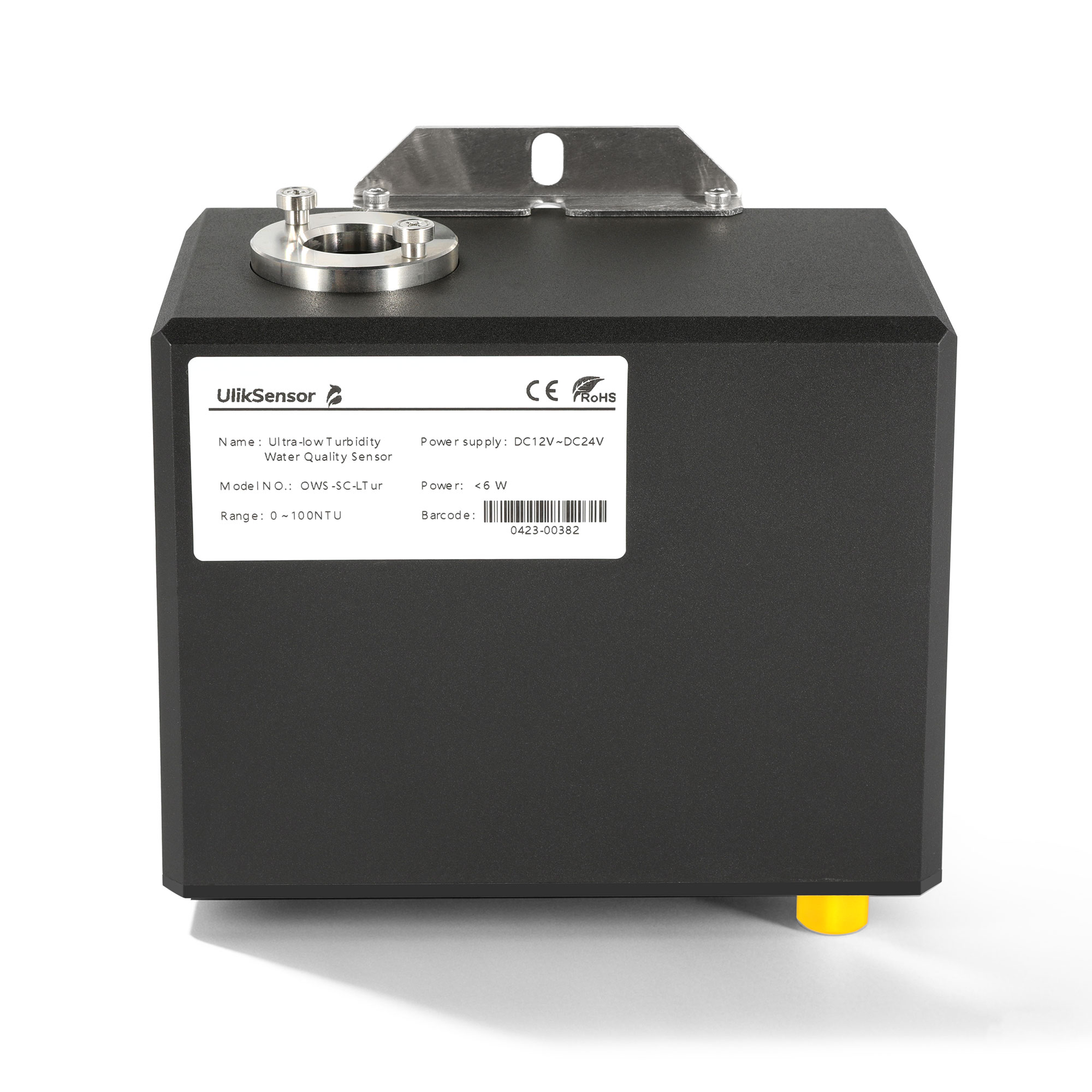

OWS-SC-LTur Ultra-low Turbidity Water Quality Sensor

Category Sensors for Drinking Water Tags Temperature, TUR

Based on the principle of 90° scattered light, OWS-SC-LTur uses high parallelism, with an automatic light intensity correction laser light source and highly sensitive detector.
The detection performance is very superior at ultra-low turbidity (<1 NTU).
Equipped with an automatic optical window cleaning function, the sensor is maintenance-free for tap water application scenarios for a long time.
Less than 1/4 of the volume of the HACH TU5300SC and HACH 1720E.
The sensor can be equipped with our TRM series transmitter and Ulik-Server Cloud Service to realize remote real-time monitoring, as well as remote operation and maintenance of equipment.

★ Key Performance Parameters：

Monitoring Parameter	Range	Accuracy	Resolution
TUR	0~100 NTU	±2% of reading or ±0.015 NTU(the larger value)	0.001 NTU

OWS-SC-LTur vs HACH 1720E

OWS-SC-LTur vs HACH TU5300

Basic Parameters:

Additional information

Monitoring Parameter	Turbidity, Temperature
Principle	Nephelometry with scattered light at a 90-degree angle to the incident light.
Measurement Interval	Minimum 10 s
Interface	RS485
Protocol	Modbus RTU
Mounting	Indoor on a wall
Weight	1.6 kg
Dimension	150 mm×82 mm×175 mm(5.9 in×3.2 in×6.9 in)
Material	AISI 316L
IP Rating	IP68
Cleaning Methed	Automatic optical window cleaning
Working Voltage	DC 12~24 V
Power	< 6 W
Working Temp	2 ℃~50 ℃
Pressure	≤1.0 Mpa
Humidity	5% to 95% relative humidity, non-condensing
Cable Length	2 m or custom
Certification	CE/RoHS
Warranty	One year
