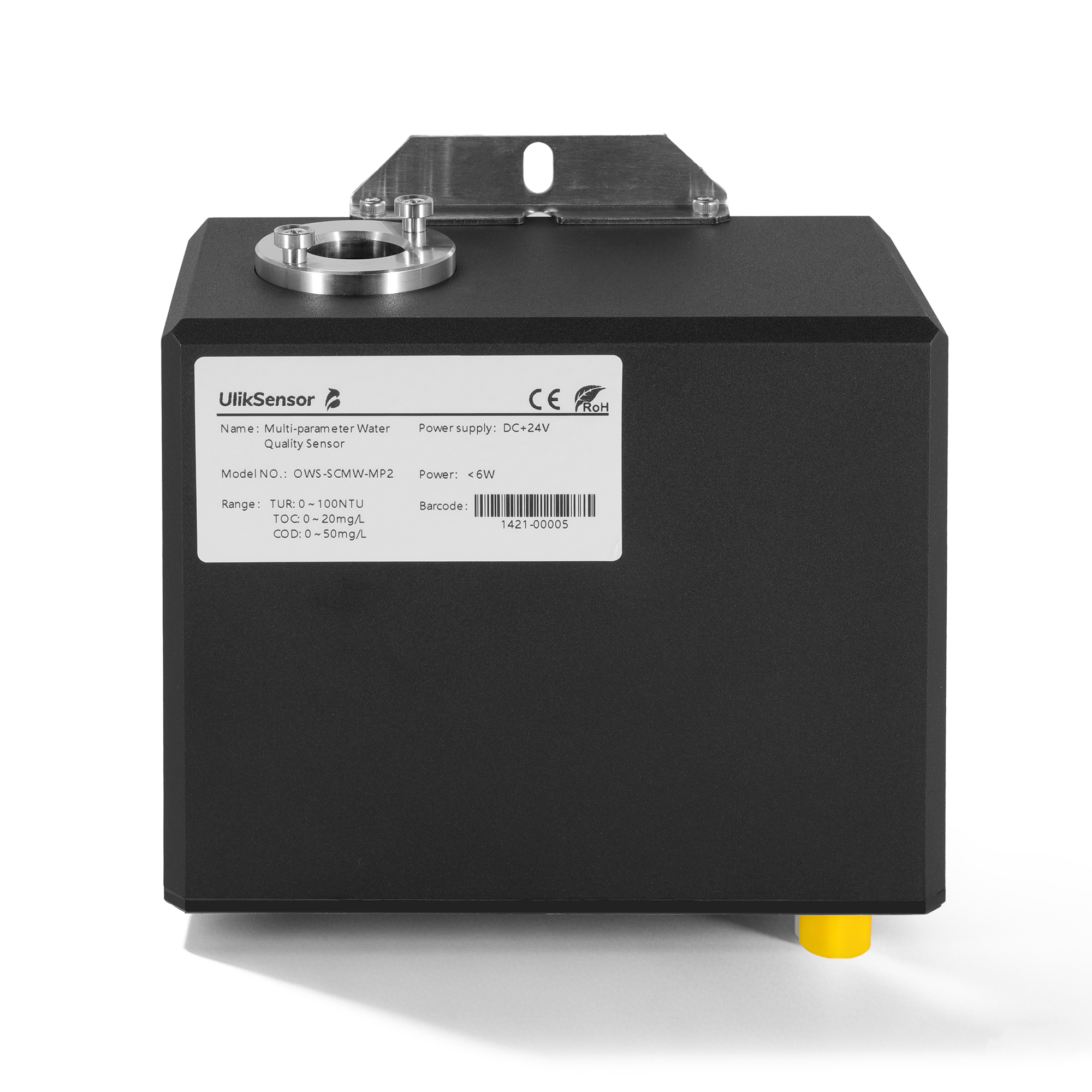

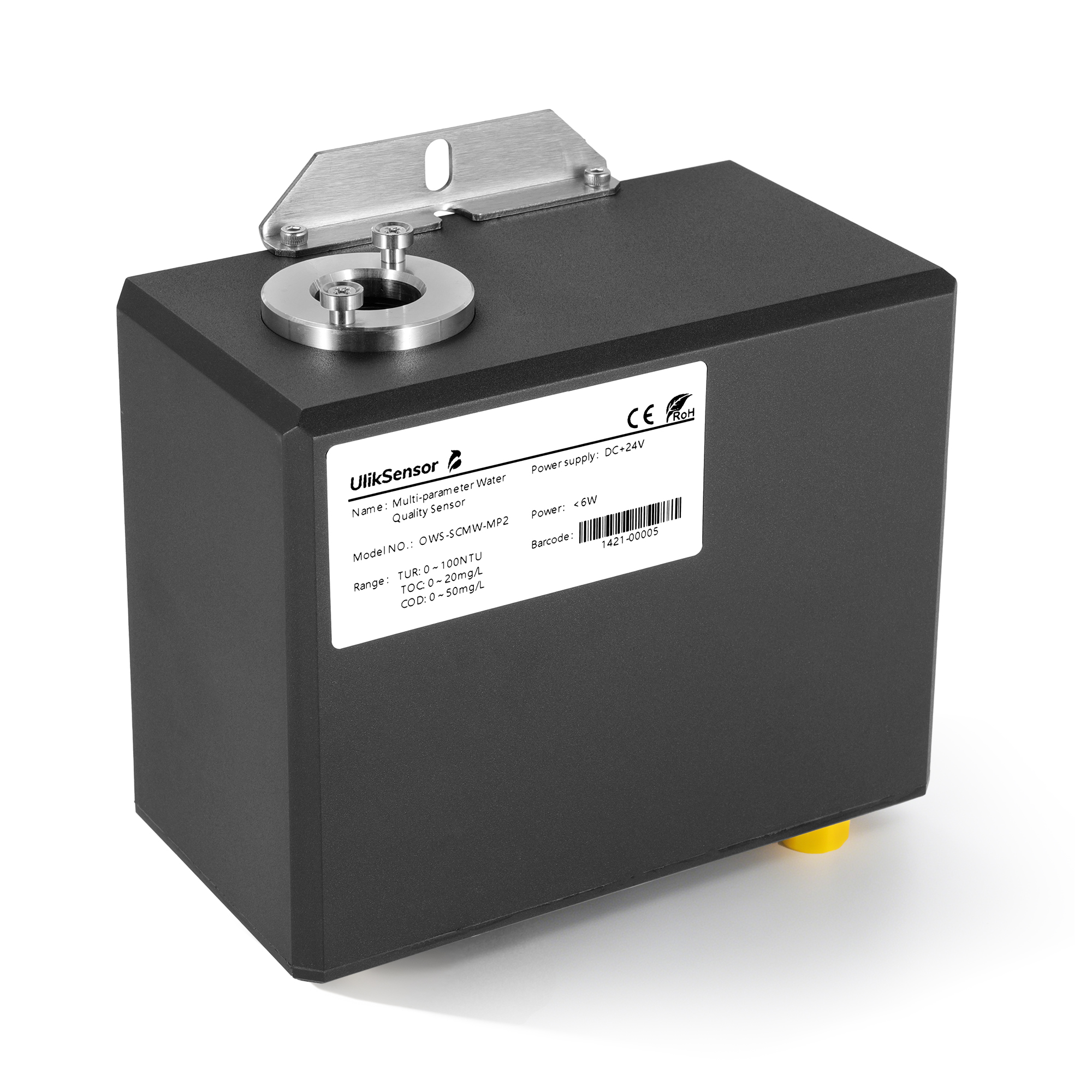

OWS-SCMW-MPx Multi-parameter Optical Water Quality Sensor

Category Tags , , ,
  • OWS-SCMW-MPx sensors can measure turbidity, chromaticity, COD, and TOC at the same time.
  • The turbidity measurement is based on the 90°scattered light principle, and the COD and TOC measurements are based on the ultraviolet spectrum absorption principle.
  • It adopts high parallelism and has an automatic light intensity correction laser light source and high sensitivity detector. The sensor is equipped with an automatic optical window cleaning function, long-term maintenance-free, and suitable for tap water application scenarios.
  • In addition, with the TRM series data transmitter and Ulik-Server  Cloud Service, users can realize on-site and remote data viewing.
Ask for a Quote

★  Key Performance Parameters：

Monitoring parameter Range Accuracy Resolution
TUR 0~100 NTU ±2% of reading or ±0.015 NTU 0.001  NTU
COD 0~50 mg/L（KHP） ±2% F.S. or ±0.5 mg/L 0.001  mg/L
TOC 0~20 mg/L（KHP） ±2% F.S. or ±0.25 mg/L 0.001  mg/L
Chromaticity 0~200° ±10% F.S. 0.1°



Basic Parameters:

Additional information

Monitoring Parameter

CODcr, CODmn, TOC, TUR, Chromaticity
Principle

TUR: Nephelometry with scattered light at a 90-degree angle to the incident light.
COD/TOC: Ultraviolet absorption spectroscopy.
Measurement Interval

Minimum 10 s
Interface

RS485
Protocol

Modbus RTU
IP Rating

IP68
Mounting

Indoor on a wall
Weight

1.6 kg
Dimension

150×82×175 mm(5.9×3.2×6.9 in)
Material

AISI 316L
Cleaning Methed

Automatic optical window cleaning function
Working Voltage

DC 12~24 V
Power

＜6 W
Working Temp

2 ℃~50 ℃
Pressure

≤1 MPa
Humidity

5% to 95% relative humidity, non-condensing
Cable Length

Custom
Certification

CE/RoHS
Warranty

One year
