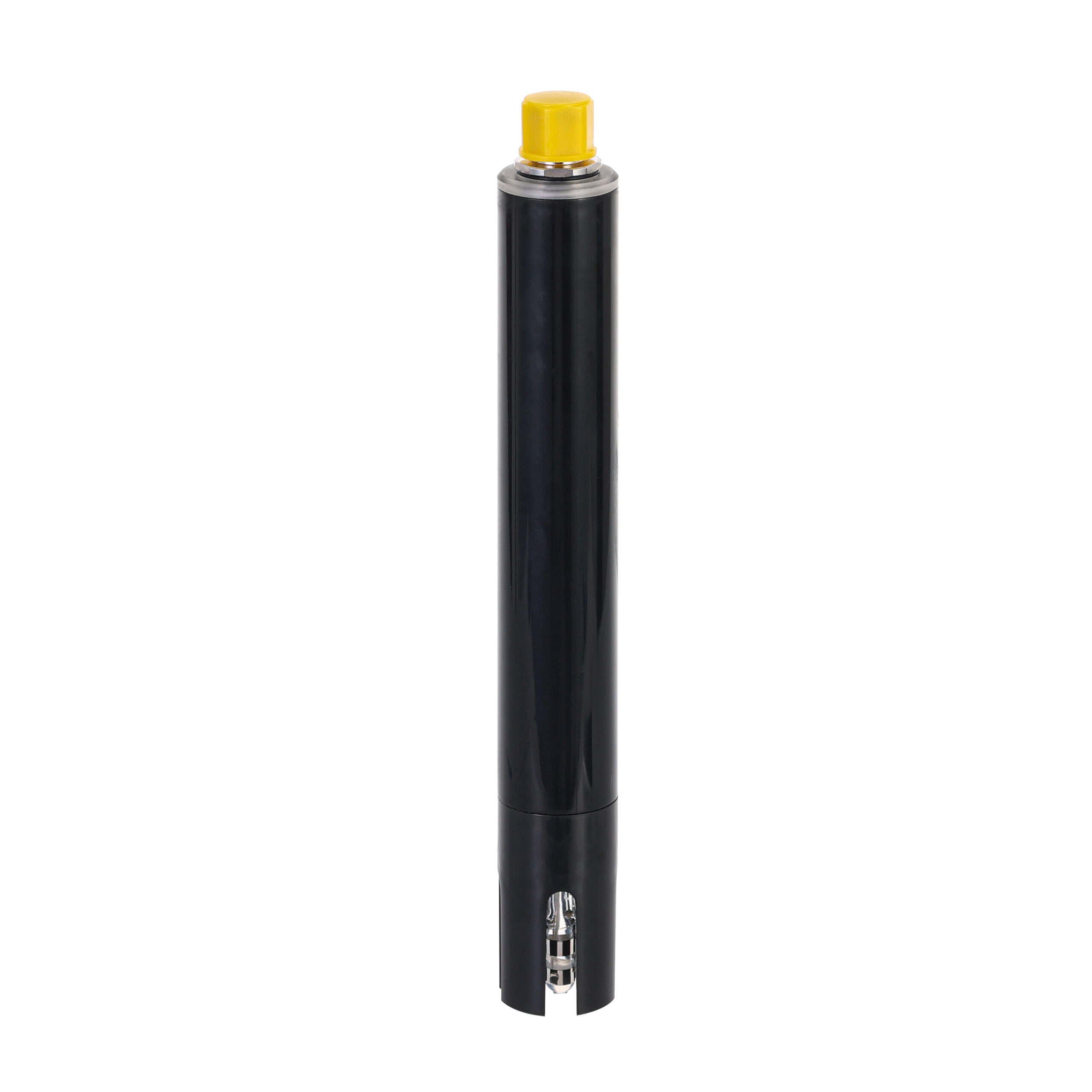

EWS-3ECV-FCl Free Chlorine Water Quality Sensor

Category Sensors for Drinking Water Tag Free Chlorine

Adopting the constant voltage measurement principle, the EWS-3ECV-FCl free chlorine water quality sensor can continuously and accurately detect Free Residual Chlorine content in water samples. It requires no reagent consumption and no replacement of the membrane cap or electrolyte.
Low power consumption design, Zero-point stability.
Connected to our TRM series transmitter and Ulik-Server Cloud Service to realize remote real-time monitoring and remote control.

★ Key Performance Parameters：

Parameter	Range	Accuracy	Resolution
Free Chlorine (HClO, ClO^–)	0-2 mg/L, 0-5 mg/L, 0-20 mg/L	±3% F.S.	0.001 mg/L

Specification:

Additional information

Principle	Double platinum ring, constant voltage method
Dimension	Φ25×231 mm (Dimensions may vary slightly for different models)
Weight	0.62 kg
Material	ABS (shell), glass (electrode)
Measurement Interval	Minimum 1 s
Communication	RS 485 (Modbus RTU), Bluetooth
Power Requirements	DC 12 V~ 24 V
Power Consumption	＜0.5 W
Protection Class	IP68/IP67
Installation	Flow-through
Operating Temperature	0-50 °C (32-122 °F), in unfrozen water.
Storage Temperature	0-50 °C (32-122 °F)
Pressure	≤1 bar
Humidity	5% to 95% relative humidity, non-condensing
Flow Rate	250-500 ml/min
Cable Length	Cable extending directly: 6 m (19.69 ft.), M12 5-pin aviation plug: 2 m (6.56 ft.) Customizable length
Certification	CE/RoHS
Warranty	One year
