EWS-ISE Ion Selective Electrode Water Quality Sensor

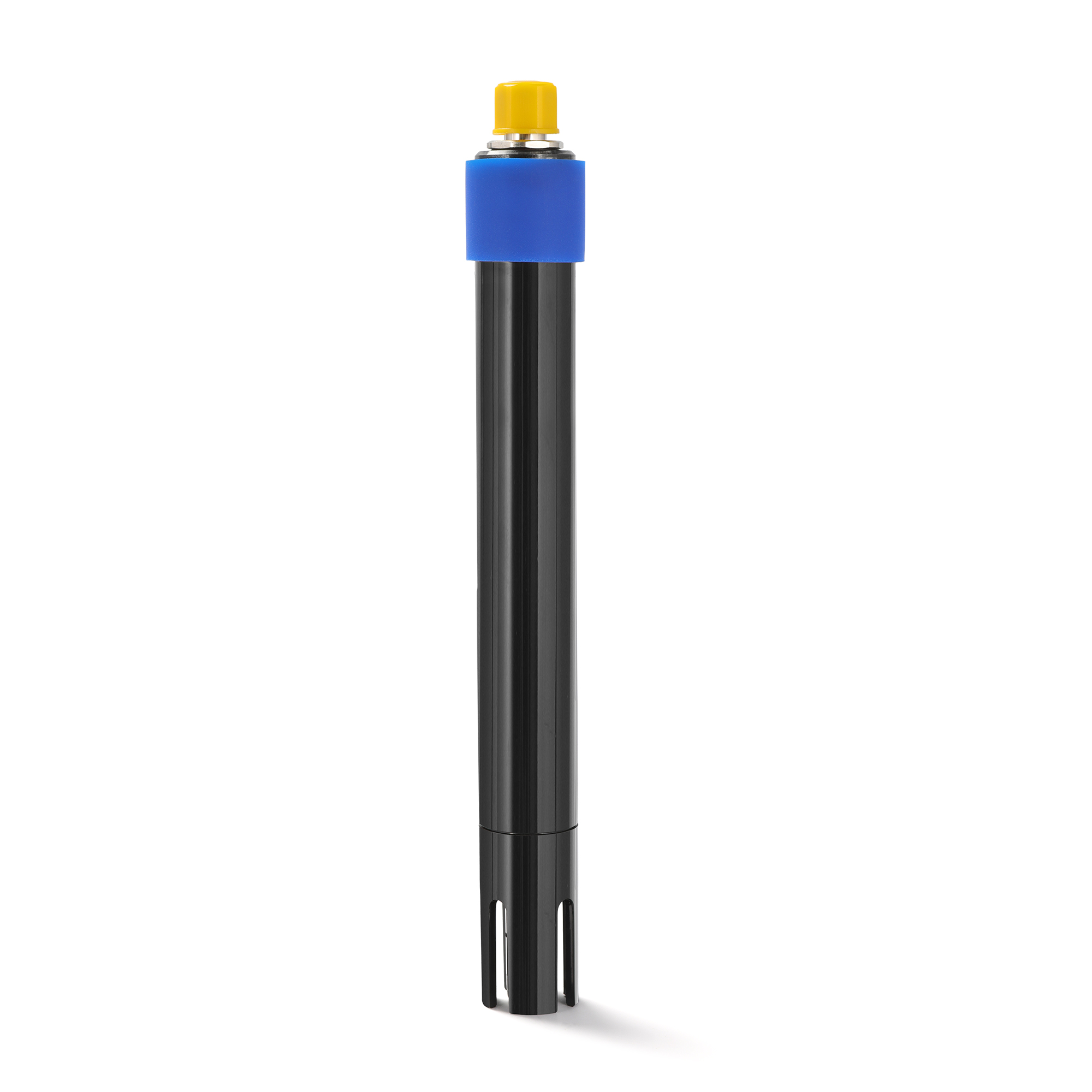

EWS-ISE Ion Selective Electrode Water Quality Sensor

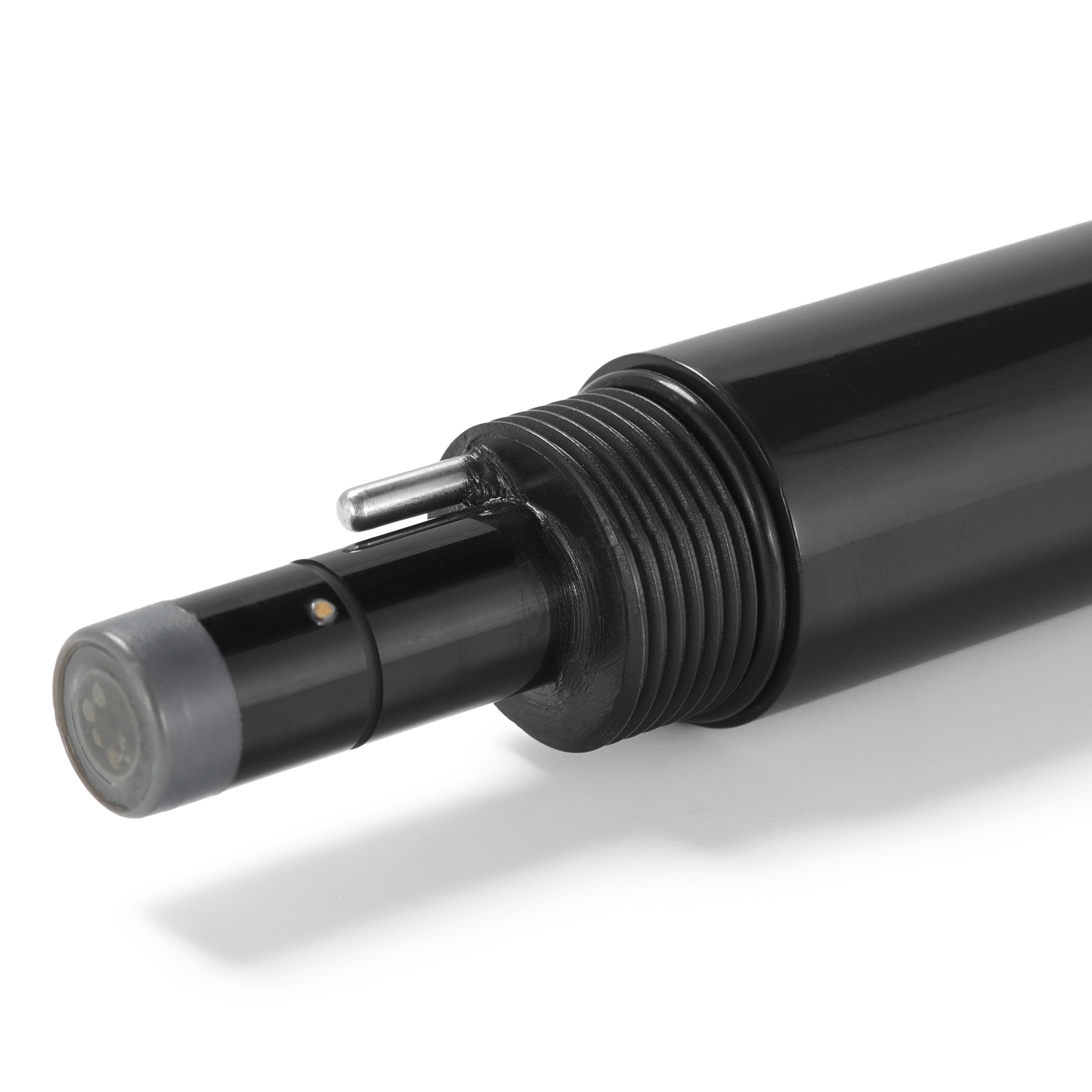

EWS-ISE Ion Selective Electrode Water Quality Sensor - Image 2
Category
  • Ion-selective electrodes (ISEs) are electrochemical sensors based on a sensitive membrane, which is the element that makes the electrode respond selectively to specific ions. Measurement of different ions is achieved by using selective membranes of different materials. The ion-selective method consists of a working electrode, a reference electrode, an ion-selective membrane, and an electrolyte. Only the ions to be measured can migrate through the ion-selective membrane and undergo a charge change, generating a potential at the working electrode, the value of which is proportional to the concentration of the ions, and a constant potential at the reference electrode. Based on the Nernst equation, the transmitter measures the potential difference between the working electrode and the reference electrode and converts it into ion concentration.
  • Fast response with a minimum measurement cycle of only 1 second
  • Applied to surface water monitoring, domestic wastewater, agricultural wastewater, and municipal wastewater.
  • Connected to the TRM transmitter and Ulik-Server Cloud Service to realize remote real-time monitoring of data and remote control.
Ask for a Quote

★  Key Performance Parameters：

Parameter (optional)  Range  Accuracy Resolution
Potassium (K+)  0 – 1000 mg/L ±5% R.D. or ±0.5 mg/L 0.01 mg/L (0-100 mg/L), 0.1 mg/L (>100 mg/L),
Nitrate (NO3–)  0 – 1000 mg/L ±5% R.D. or ±0.5 mg/L 0.01 mg/L (0-100 mg/L), 0.1 mg/L (>100 mg/L),
Chloride (Cl–)  0 – 1000 mg/L ±5% R.D. or ±0.5 mg/L 0.01 mg/L (0-100 mg/L), 0.1 mg/L (>100 mg/L),
Fluoride (F–)  0 – 1000 mg/L ±5% R.D. or ±0.5 mg/L 0.01 mg/L (0-100 mg/L), 0.1 mg/L (>100 mg/L),
Calcium (Ca²+) 0 – 1000 mg/L ±5% R.D. or ±0.5 mg/L 0.01 mg/L (0-100 mg/L), 0.1 mg/L (>100 mg/L),
Temperature 0 to 50 °C ±0.1 °C 0.01°C



Specification:

Additional information

Principle

Ion-selective electrode method
Detection Limit

0.2 mg/L
Dimension

Φ25×261 mm (Dimensions may vary slightly for different models)
Weight

0.63 kg
Material

ABS (shell), EP (electrode)
Measurement Interval

Minimum 1 s
Communication

RS 485 (Modbus RTU), Bluetooth
Power Requirements

DC 12 V~24 V
Power Consumption

＜0.5 W
Protection Class

IP68/IP67
Installation

Immersion, Flow-through
Operating temperature

0-50 °C (32-122 °F)
Storage Temperature

0-50 °C (32-122 °F)
Pressure

≤1 Bar
Humidity

5% to 95% relative humidity, non-condensing
Flow Rate

200-500 ml/min
Flow Velocity

<3 m/s
Cable Length

Cable extending directly: 6 m (19.69 ft.), M12 5-pin aviation plug: 2 m (6.56 ft.), Customizable length
Certification

CE/RoHS
Warranty

6 months
